常规搅拌头  Conventional Tool for FSW
——————————————————————

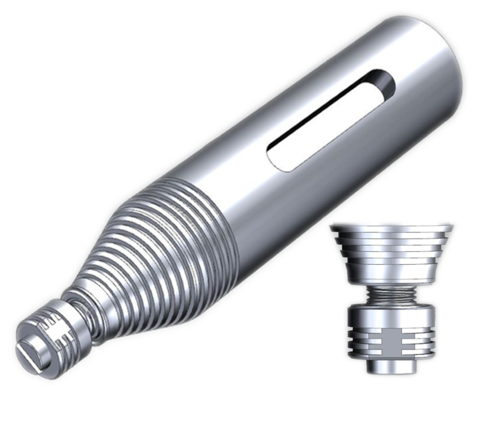

双轴肩搅拌头  Bobbin Tool for FSW
——————————————————————
静轴肩搅拌头  Stationary Shoulder FSW
——————————————————————
     常规FSW焊接过程中,搅拌头高速旋转扎入待焊母材,在搅拌针高速切削并搅拌焊缝金属的同时,轴肩持续对母材施加锻压力,使焊缝金属不断回填搅拌针后方的密闭型腔,最终形成致密的接头。
      During the conventional FSW welding process, the pin rotates at high speed and plunges into the base metal. While the pin cuts and stirs the weld metal at high speed, the shoulder continues to apply forging pressure to the base metal, so that the weld metal continuously backfills the back of the pin. The cavity is closed, resulting in a dense joint.
      双轴肩搅拌摩擦焊接过程中,搅拌头在工件端部缓慢“切入”待焊母材,焊缝金属在上下轴肩同步旋转及锻压作用下形成致密的焊缝。由于双轴肩搅拌头特有的“自支撑结构”,使得焊缝背部无需刚性支撑,可最大程度实现产品的轻量化设计。
       During the bobbin tool FSW process, the tool slowly "cuts" into the base metal at the end of the workpiece, and the weld metal forms a dense weld under the synchronous rotation of the upper and lower shoulders and the action of forging. Due to the unique "self-supporting structure" of the bobbin tool, the back of the weld does not need rigid support, which can maximize the lightweight design of the product.
      静轴肩搅拌摩擦焊接过程中,焊接热主要由高速旋转的搅拌针与母材摩擦产生,轴肩在焊接过程中不发生旋转。采用该焊接方法获得的接头不仅抗拉强度高、焊接变形小,而且焊缝表面基本无飞边缺欠,是最有发展前景的搅拌摩擦焊接技术。
      During the stationary shoulder FSW process, the welding heat input is mainly generated by the friction between the high-speed rotating pin and the base metal, and the stationary shoulder does not rotate during the welding process. The joint obtained by this welding method not only has high tensile strength, small welding deformation, but also almost has no flash defects on the surface of the welding seam, which is the most promising friction stir welding technology.
技术研究
07
2019/08

   搅拌摩擦焊是一项固相焊接技术9在航空航天\高速列车\汽车以及船舶等行业均得到不同程度的应用O在此以工艺试验为基础9研究了旋转速度及其与焊接速度的匹配对 6063 铝合金搅拌摩擦焊接头形貌以及力学性能的影响O研究表明9在高旋转速度\高焊接速度匹配条件下能够获得优质 6063 铝合金搅拌摩擦焊接头O

07
2019/08

   通过拉伸试验、弯曲试验和金相组织分析,研究氧化膜对6005A—T6铝合金双轴肩搅拌摩擦焊接头性能的影响。在不进行表面氧化膜处理的情况,接头中会产生“c”形S线,接头抗拉强度184.3 MPa,为母材强度的2.2%,弯曲不合格;在进行表面氧化膜处理的情况下,接头中不存在明显的S线,接头分为焊核区(WNZ)、热机影响区(TMAZ)、热影响区(HAZ)和母材(BM),接头抗拉强度219.3 M

更多优秀产品
搅拌摩擦焊接标准

----------------------------------------------------------------------------------


 GB-T 34630.1-2017 搅拌摩擦焊 铝及铝合金 第1部分:术语及定义

GB-T 34630.1-2017 搅拌摩擦焊 铝及铝合金 第1部分:术语及定义.pdf




----------------------------------------------------------------------------------


GB-T 34630.2-2017 搅拌摩擦焊 铝及铝合金 第2部分:焊接接头设计‍

GB-T 34630.2-2017 搅拌摩擦焊 铝及铝合金 第2部分:焊接接头设计.pdf



----------------------------------------------------------------------------------


GB-T 34630.3-2017 搅拌摩擦焊 铝及铝合金 第3部分:焊接操作工的技能评定‍

GB-T 34630.3-2017 搅拌摩擦焊 铝及铝合金 第3部分:焊接操作工的技能评定.pdf



----------------------------------------------------------------------------------


GBT 34630.4-2017   搅拌摩擦焊   铝及铝合金   第4部分:焊接工艺规程及评定‍

GBT 34630.4-2017   搅拌摩擦焊   铝及铝合金   第4部分:焊接工艺规程及评定.pdf




----------------------------------------------------------------------------------

GB-T 34630.5-2017 搅拌摩擦焊 铝及铝合金 第5部分:质量与检验要求

GB-T 34630.5-2017 搅拌摩擦焊 铝及铝合金 第5部分:质量与检验要求.pdf
